RaspiScope is extremely simple, using only one Operational Amplifier in each input and output. Input and output voltage ranges can be easily set with a few resistors.
Analog inputs
A single OP amp does the level shifting from negative voltages to voltage of 0 … 2.048V for the MCU to measure. Each OP amp has an offset setting resistor.
Analog outputs

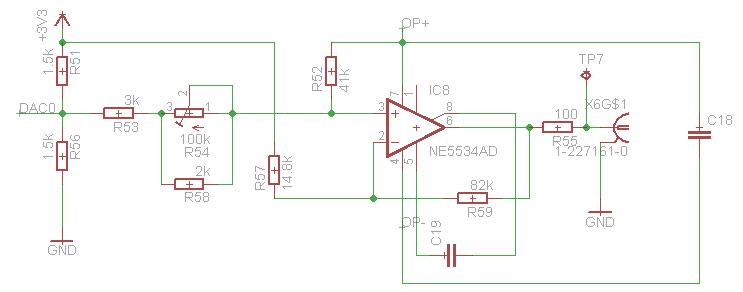

A single OP amp does the level shifting from 0 … 3.3V from the MCU DAC output to +- 5V or +-15V depending of what you have configured and chosen with the jumpers. Each OP amp has an offset setting resistor.
